In high-temperature industrial environments such as cement kilns, steel foundries, and coal-fired power plants, effective filtration is not just a regulatory necessity—it is a cornerstone of operational efficiency and environmental responsibility. Among all available materials, Fiberglass Filter Fabric stands out due to its superior thermal resistance, mechanical durability, and adaptability to customized filtration requirements.
This article delves into the science and engineering behind Fiberglass Filter Fabric, highlighting its raw material selection, key characteristics, advanced manufacturing and coating technologies, and filtration performance. We’ll also explain why Hongyuan Envirotech Co., Ltd., with over 20 years of expertise and innovation, is a preferred supplier in this critical industry.

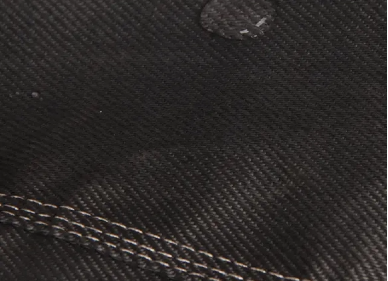

The performance of any filtration fabric begins with the base fiber. In the case of Fiberglass Filter Fabric, the primary material is E-glass or C-glass, selected for its exceptional thermal and chemical resistance properties.
E-glass fibers offer excellent mechanical strength and temperature resistance up to 260°C.
C-glass fibers, though less common, provide enhanced chemical resistance, ideal for aggressive gas environments.
What sets fiberglass apart is its inorganic nature, which ensures that it does not burn, degrade easily, or release toxic compounds under extreme heat. This makes it especially valuable in industries where hot gas filtration is required.
Fiberglass Filter Fabric exhibits a combination of features that make it highly effective in industrial filtration:
High-Temperature Resistance: Can withstand continuous exposure to temperatures up to 260°C, with certain finishes allowing operation up to 280°C or higher.
Dimensional Stability: Maintains its structure and porosity under thermal stress, ensuring reliable filtration performance.
Chemical Resistance: Withstands acidic and alkaline environments common in industrial exhaust streams.
Mechanical Strength: High tensile strength enables longer service life and reduced bag change frequency.
Customizability: Can be tailored with varying yarn types, weave densities, and finishes.
These properties make fiberglass fabric the go-to solution for baghouse filters, dust collectors, and fabric-based filtration systems in high-demand sectors.
Producing high-quality Fiberglass Filter Fabric requires a precise and controlled manufacturing process to ensure uniform performance and suitability for demanding industrial applications.
Yarn Formation: The process begins with drawing molten glass into fine filaments. These filaments are then bundled and twisted to form fiberglass yarns. The quality of this step directly influences the strength and consistency of the final fabric.
Weaving: The yarns are woven into fabric using specific patterns—such as plain, twill, or satin weave—selected based on the desired filtration performance, flexibility, and mechanical strength. Each pattern offers different benefits in terms of air permeability and durability.
Heat Setting: After weaving, the fabric undergoes a heat-setting process. This step stabilizes the fabric’s dimensions, relieves internal stresses, and enhances its ability to withstand high temperatures without shrinking or deforming.
Surface Cleaning: The fabric is then thoroughly cleaned to remove any sizing agents or contaminants that may interfere with subsequent treatments. This step prepares the fabric for coatings or laminations like PTFE or silicone, which further enhance its resistance to chemicals, moisture, and abrasion.
This process ensures the final product has the mechanical integrity, porosity, and surface smoothness required for advanced filtration.
One of the most critical steps in producing high-performance fiberglass filter fabric is the application of surface treatments and coatings. These not only improve the durability and filtration efficiency but also extend the service life of the product.
This treatment imparts water and oil repellency to the fabric. By reducing surface tension, it allows dust cakes to release more easily during cleaning. This significantly improves cleaning efficiency in systems using pulse-jet or reverse-air cleaning methods, enhancing overall filtration performance.
Graphite coating enhances the fabric’s temperature resistance, enabling it to withstand up to 300°C. It also provides anti-static and anti-sparking characteristics, which are vital in combustible dust environments, such as aluminum smelting or coal handling facilities.
PTFE lamination delivers outstanding chemical resistance and non-stick surface properties, preventing particle adhesion and reducing clogging and fouling. This makes it ideal for use in sticky, moist, or highly corrosive gas streams.
The choice of coating depends on the application conditions, including temperature range, gas composition, and dust particle characteristics.
The filtration efficiency of Fiberglass Filter Fabric is primarily determined by its pore size, which depends on key factors such as yarn diameter, weave pattern, and fabric density. Standard pore sizes typically range from 2 to 25 microns, allowing the fabric to effectively capture a wide range of dust and particulate matter.
Filtration is achieved through multiple mechanisms, including mechanical interception, inertial impaction, and diffusion, enabling fiberglass filter fabric to achieve over 99.9% particulate retention in many industrial applications.
For even finer filtration requirements, advanced needle-punching techniques or multi-layer composite structures can be applied. These enhancements further improve the fabric’s ability to capture ultrafine particles, ensuring compliance with stringent emission standards in industries such as cement, steel, and energy generation. This makes Fiberglass Filter Fabric a highly effective and versatile solution for demanding dust collection environments.
When it comes to sourcing Fiberglass Filter Fabric, not all manufacturers are created equal. Here's why Hongyuan Envirotech Co., Ltd. stands out in the competitive landscape:
With two decades of innovation and refinement, Hongyuan has a deep understanding of the technical and operational challenges faced by industries. This enables them to produce filter fabrics that are not only compliant but also cost-effective.
Hongyuan offers a unique advantage by producing filter fabrics made from fiberglass, PPS, P84, polyimide, and other advanced materials, either as pure or blended rolls. This versatility enables customized solutions for diverse operating environments.
Each industrial process generates unique particulates under varying chemical and thermal conditions. Hongyuan provides tailor-made filtration solutions by adjusting the fiber blend, weave pattern, and surface treatment to meet client-specific requirements.
With state-of-the-art weaving, lamination, and coating machinery, Hongyuan ensures consistent product quality and high output efficiency, meeting large-scale demand without compromising standards.
From raw material inspection to final roll testing, every stage is monitored for adherence to ISO and industry-specific standards, ensuring customers receive only the best products.
Fiberglass Filter Fabric from Hongyuan is widely used in:
Cement Plants: For kiln, cooler, and clinker dust collection.
Steel & Foundry Operations: High-temperature furnace exhausts.
Coal-Fired Power Plants: Fly ash capture and flue gas filtration.
Waste Incineration: Managing corrosive gases and high particulate loads.
Chemical Industry: Handling volatile organic compounds and aggressive gases.
Its durability, customizability, and coating versatility make it a trusted solution in multiple sectors striving for cleaner emissions and regulatory compliance.
In an industrial world increasingly focused on sustainability and emission control, Fiberglass Filter Fabric emerges as a key solution for efficient air filtration. From raw material selection and manufacturing excellence to coating technologies and application-specific tailoring, the performance of fiberglass fabric hinges on quality and experience.
With a legacy of more than 20 years, Hongyuan Envirotech Co., Ltd. has become a trusted name in the industry. Their comprehensive capabilities in both fiberglass and chemical fiber filter media, combined with custom development and rigorous quality control, make them the ideal partner for your filtration needs.
